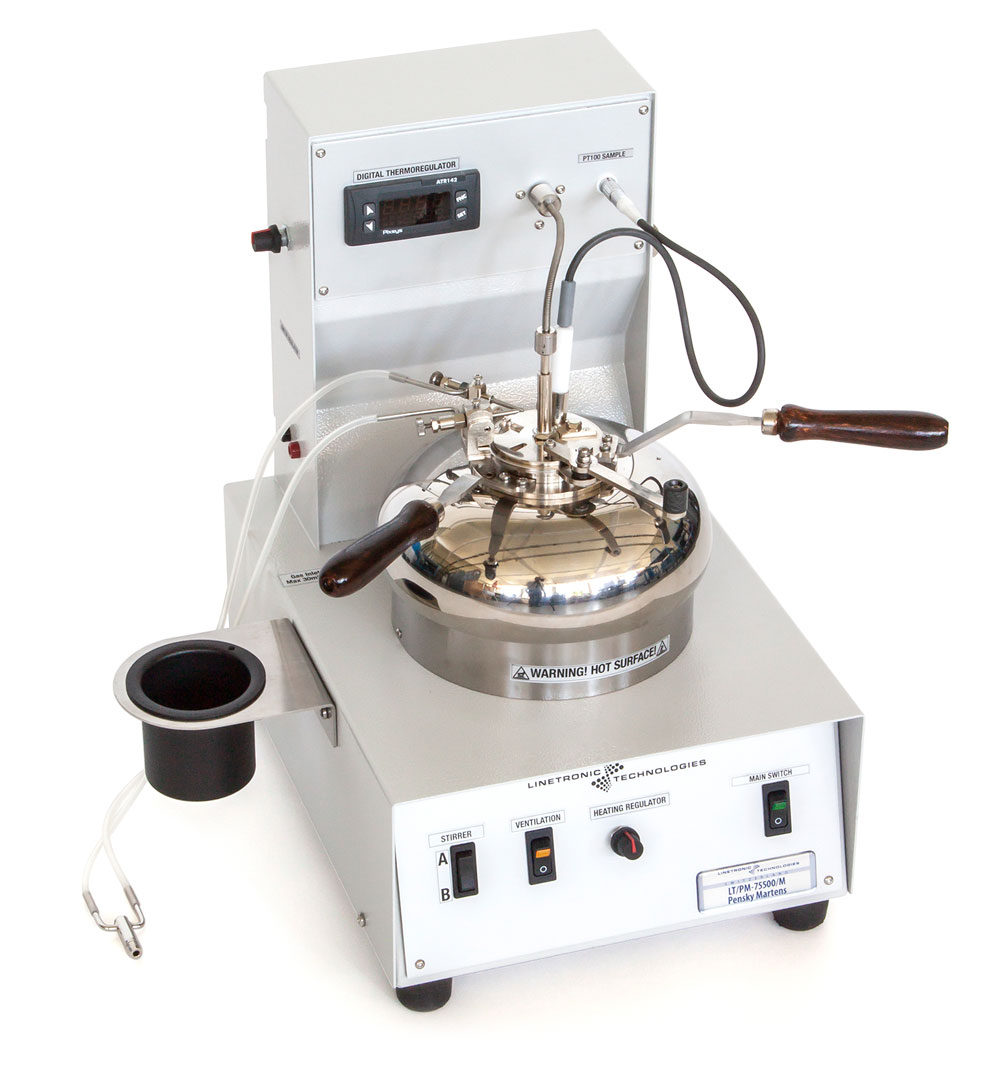

Flash Point Tester Pensky-Martens (Closed cup)

LT/PM-75500/M

Digital Electric Pensky Martens A and B Procedures

Electrically heated by electronic regulator
Mounted on a case painted with anti-acid epoxy products
Calibrated brass crucible
Cover with gas ignition device allowing to ignite the testing sample by a manual trip-opening
Motor stirrer for Procedure A and B
Air bath made in brass with external stainless steel protection cover
PT 100 probe Class A for sample temperature measuring
Measuring range from 15 to 370°C
Over heat protection

This test method covers the determination of the flash point of petroleum products in the temperature range from 35 to 360°C. Procedure A is applicable to distillate fuels (diesel, kerosene, heating oil, turbine fuels), new lubricating oils, and other homogeneous petroleum liquids not included in the scope of Procedure B.
Procedure B is applicable to residual fuel oils, cutback residual, used lubricating oils, mixtures of petroleum liquids with solids, petroleum liquids that tend to form a surface film under test conditions, or are petroleum liquids of such kinematic viscosity that they are not uniformly heated under the stirring and heating conditions of Procedure A.

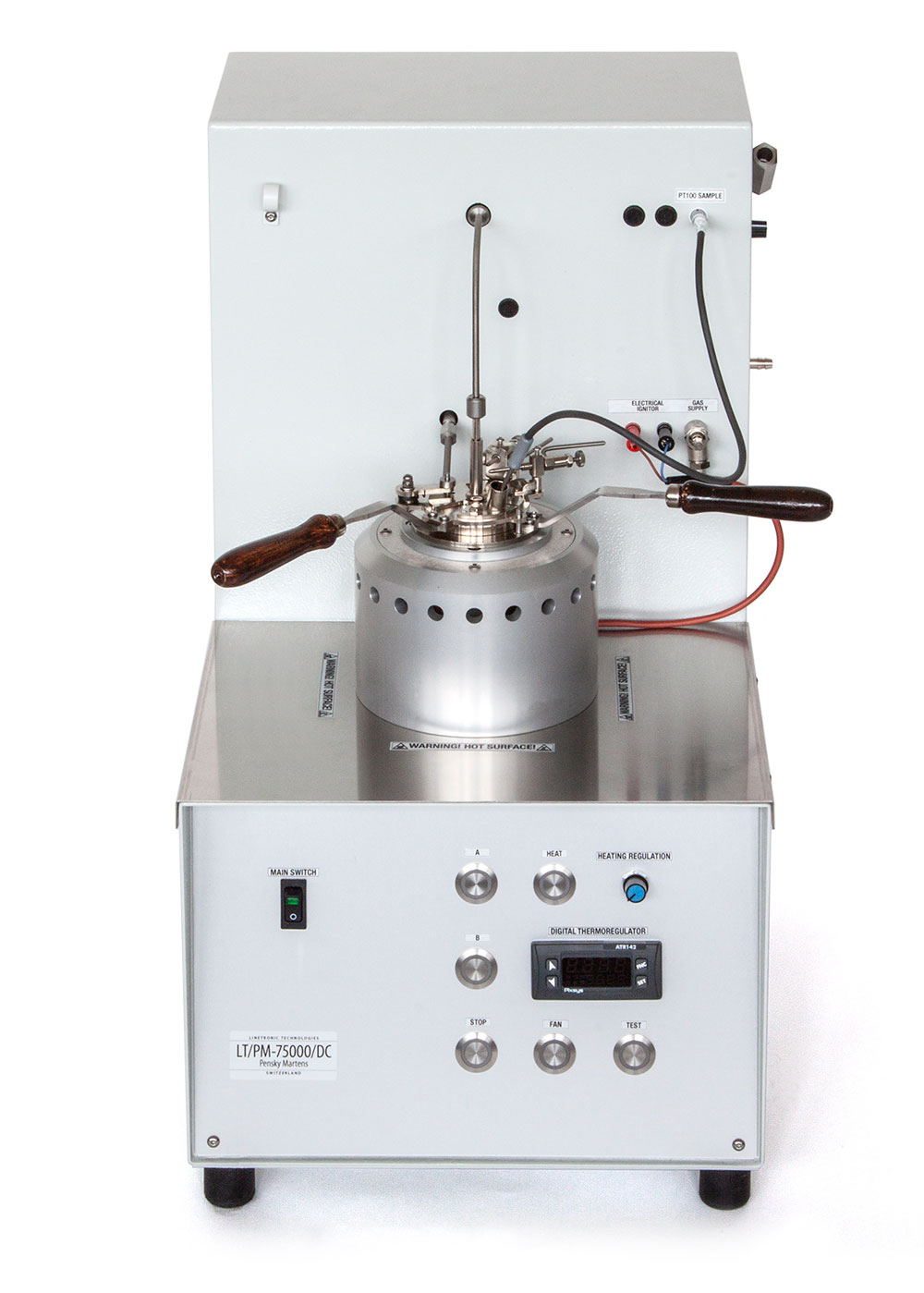

LT/PM-75000/DC

Semiautomatic Pensky Martens ASTM D93 IP 34

Electrically heated by electronic regulator manually settable
Mounted on a case painted with anti-acid epoxy products
Calibrated brass crucible
Cup / cup cover with movement stand-by support
Cover with ignition device for gas propane/butane
Automatic shutter opening and dip-in of test flame by means of an electrical motor
Electrical motor stirrer with shut off during flame application
Digital display for sample temperature reading
PT 100 probe Class A for sample temperature measuring
Built in cooling fan
Measuring range from 15 to 370°C
Over heat protection

Power Supply

220Vac 50/60 Hz

Dimensions

LT/PM-75500/M /ME: cm 35 × 28 × 43
LT/PM-75500/DC: cm 48 × 30 × 52

Weight

LT/PM-75500/M /ME: kg 7
LT/PM-75500/DC: kg 17

Accessories

LAB-120-011: electric motor, 250rpm (LT/PM-75000/M)
LAB-100-749: gas reducer 30 m bar
LAB-100-750: rubber tube-joint and tube, 5 m
T-AS9C: thermometer ASTM 9C – IP 15C
T-AS9F: thermometer ASTM 9F – IP 15F
T-AS10C: thermometer ASTM 10C – IP 16C
T-AS10F: thermometer ASTM 10F – IP 16F

Spare Parts

LAB-100-741: calibrated brass crucible
LAB-100-742: complete movement
LAB-110-022: heater
LAB-100-751: silicone tubing 5 m
LAB-100-752: thermometer collar, pack of 5
LAB-100-753: flexible stirrer drive, pack of 5
LAB-120-020: electric motor (LT/PM-75500/M)
LAB-150-110: electronic regulator
LAB-600/08-12: PT100
LAB-160-014: digital thermoregulator
