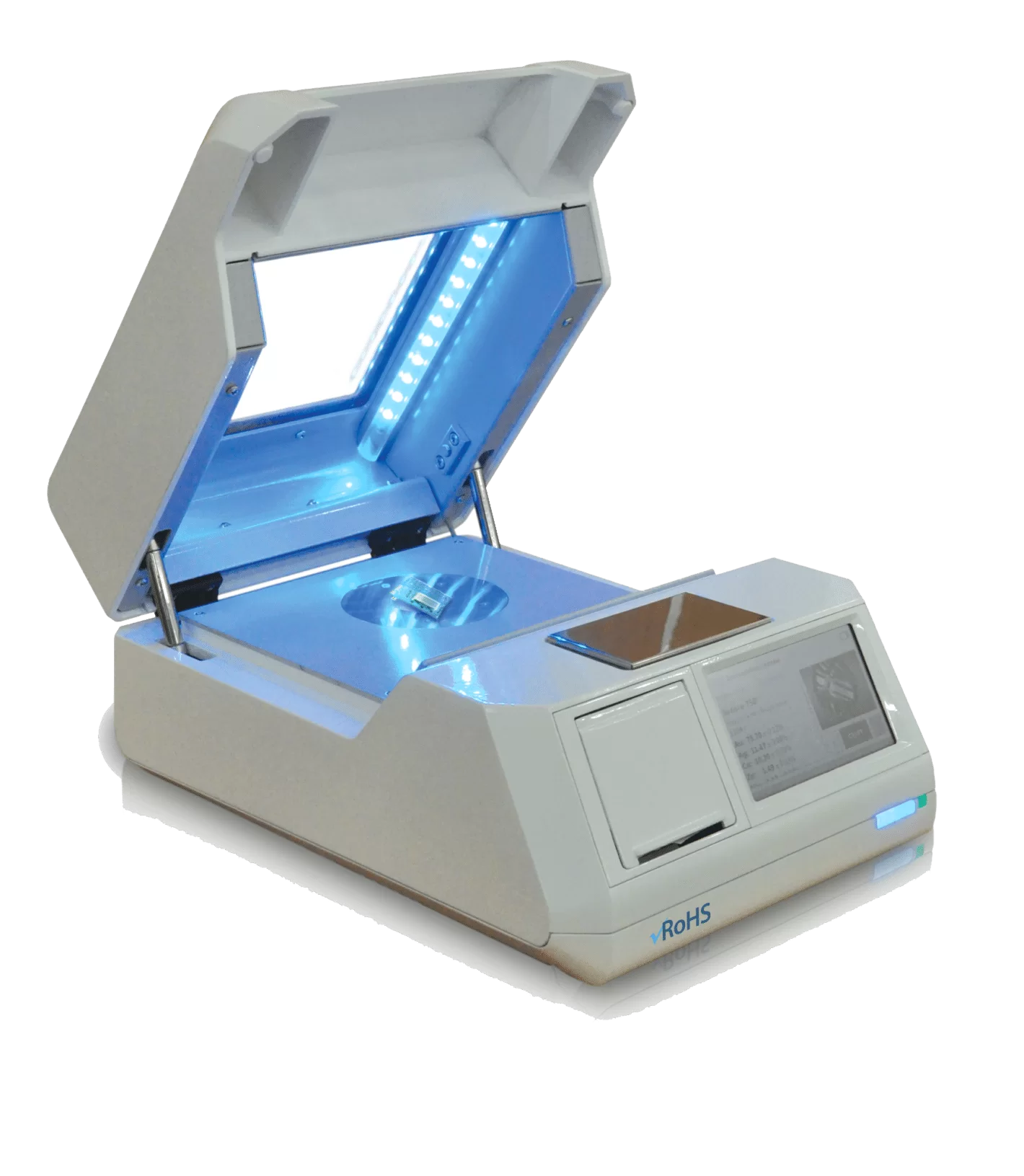

ElvaX RoHS – Specialized XRF Analyzer for RoHS Compliance
Mini laboratory for high-precision analysis in accordance with the RoHS directive
The ElvaX RoHS analyzer is specifically designed to test consumer products for compliance with the RoHS directive. One of the key features of ElvaX RoHS is automatic chlorine correction of calibration, which takes into account the influence of chlorine content in plastics on measurement of heavy metals . This allows for the use of a single calibration to test objects made of various plastics (PVC, PE, etc.) and to avoid possible errors when analyzing products made of unknown materials. Another important feature of the analyzer is automatic correction of the effect of material thickness on the analysis results. The specialized ElvaX RoHS functions and high measuring speed make the device the best solution for this type of work.
Sensitivity
Thanks to a highly sensitive SDD detector, the instrument allows to detect hazardous elements in concentrations ten times lower than the minimum acceptable by the RoHS directive.
Speed
The measurement takes only a few seconds, because the device has a high-speed digital pulse processor with DAS technology and a specially designed conversion filter.
Functionality
Video camera, 5-position collimator changer from 1 to 10 mm, built-in computer and printer, possibility of full-featured operation when connected to a PC.
Benefits
- High speed and accuracy
- Intuitive interface
- Ability to work autonomously
- Compact, does not take up much space on the table
- Ergonomic design
- Lead glass and customer display
Applications
- RoHS and Weee
Specs
General
Dimensions: 280 × 385 × 200 mm
Analytical chamber: 185 × 212 × 90 mm
Weight: 7 kg
Power supply: 90 – 240 V, 50/60 Hz
Power Consumption: 40 W
Battery: 6 hours of continuous operation
Thermal printer: optional
Software
Operating System: Windows CE
Quantitative Analysis: Fundamental Parameters Method (FPA), Empirical Calibrations
Interfaces
Data transfer: 2 USB ports, Micro SD card, Ethernet
Data input: touch screen, keyboard, mouse
