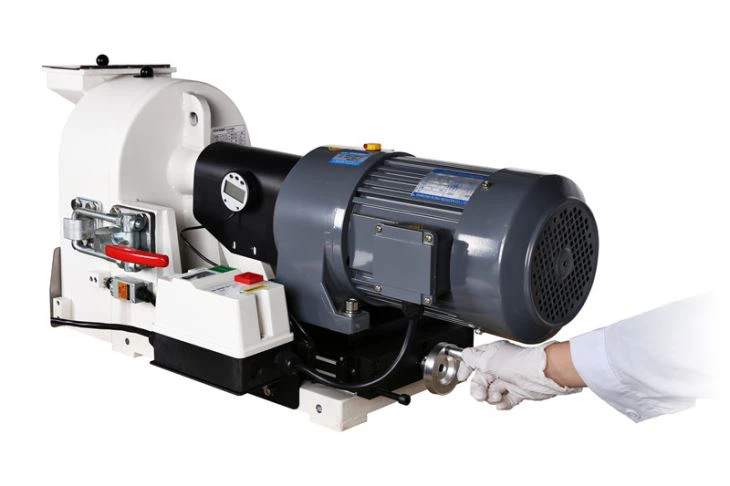

Disc Mill for Mine
Fast and powerful disc mill is firm and durable, applicable to pre-grinding and fine grinding for medium hard, hard and brittle solid materials. It can grind samples into 100μm particles very quickly.
Applications:
Concrete, building materials, granite, basalt, silicate, gypsum, dry soil samples, depositional sludge, quartz, coal, coke, lime mud, refractory clay, glass and ceramics for dentistry and so on.
Product Parameter:
| Feed size | ＜20mm |
| Final fineness | ＜100μm |
| Speed | 470rpm |
| The gap setting | 0.1~7mm |
| Collector capacity | 2.5L |
| Rated power | 1.5KW |
| Power supply | 380V ,50/60Hz |
| Instrument size (W*D*H) | 410*880*420mm |
| Package size (W*D*H) | 600*1160*625mm |
| Weight | 136Kg |
Feature and advantages:
Simple operating, easy clean
The sample feed size up to 20mm
Efficient sample treatment, extreme size reduction can be reached in a short time
Dust discharge connector design can prevent sample powders from polluting environment
Grinding discs made of various materials are available for selection and wear-resistant.
The gap of grinding discs can be adjusted continuously
Large processing capacity of samples
Disc gap adjustment can be digitally displayed
