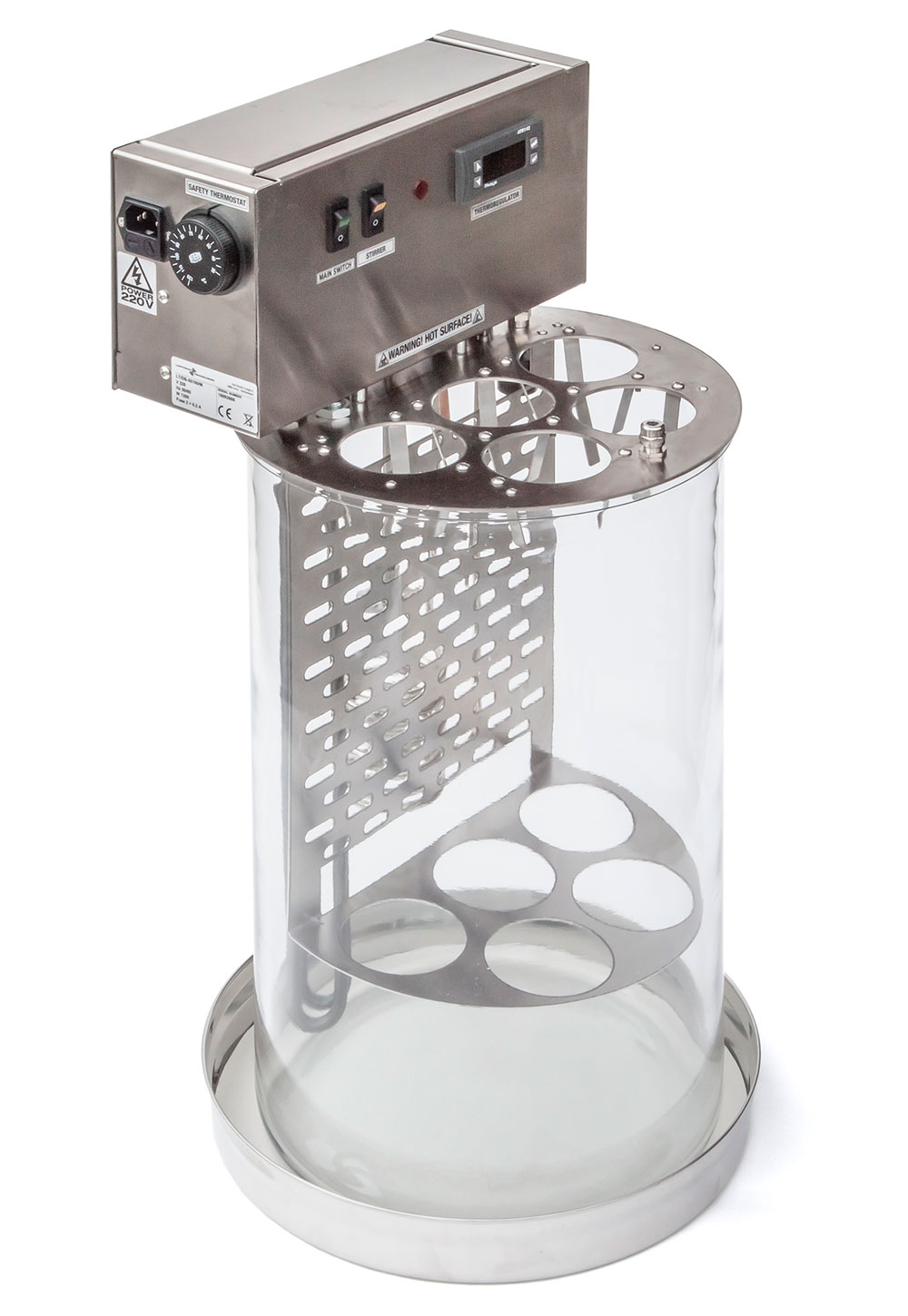

Digital Densimetry Bath LT/DB-55100/M
Digital densimetry bath, manual instrument composed by:
- Glass tank of about 29 litres capacity with stainless steel table support.
- Stainless steel cover with 5 holes 69 mm diameter for 65 × 440 mm test tubes with tube guide.
- Thermometer support and 5 stand-by covers for unused openings.
- Stainless steel control unit with heating protection system including, power switch, stirrer switch, thermoregulator, safety thermostat equipped with PT100 A class for temperature reading.
- Brass Cooling coil with Ni-Cr treatment and joints for external cooling system.
- Stainless steel immersion heaters with low level liquid protection system.
Dimensions
- 56 cm (diameter) × 65 cm
Weight
- 12 kg
Power Supply
- 220 or 115 Vac 50/60 Hz
Accessories
- LAB-100-552/45: protection jacket for low temperature, for tank 29 litres
- LAB-100-553: test tubes 65 × 440 mm, pack of 5
- LAB-100-555: cylinder for densimetry with foot, 450 mm height
- T-AS12C: thermometer ASTM 12C – IP 64C
Spare Parts
- LAB-100-553: test tubes 65 × 440 mm, pack of 5
- LAB-100-555: cylinder for densimetry with foot, 450 mm height
- LAB-140-002: PT100 probe
- LAB-110-012: heater
- LAB-160-014: digital thermoregulator
- LAB-150-015: static relay
